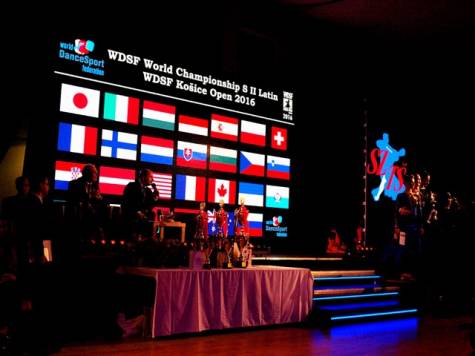

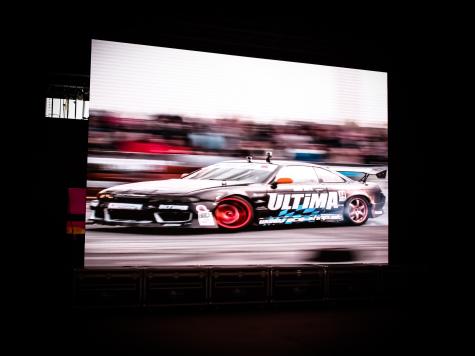

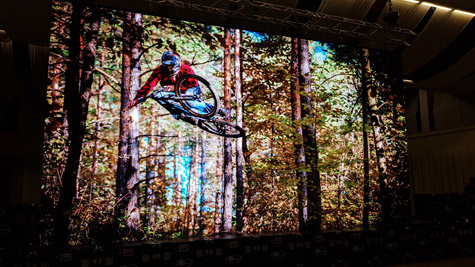

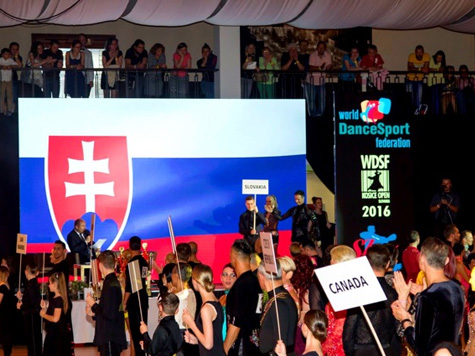

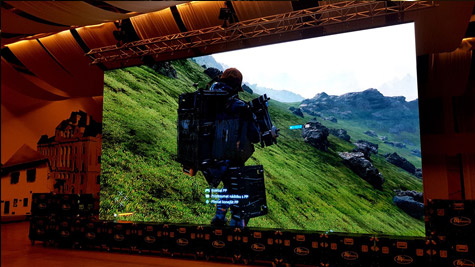

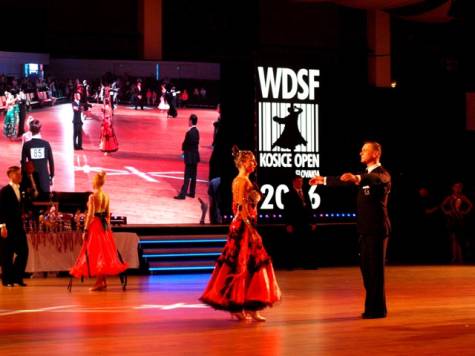

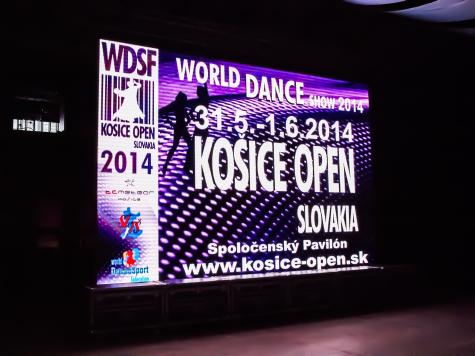

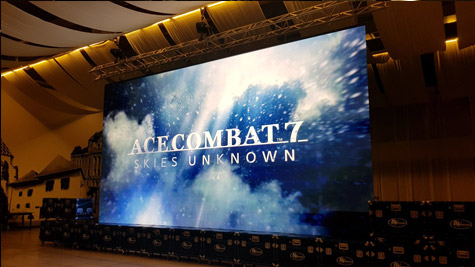

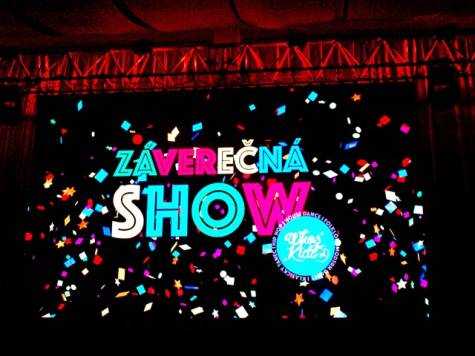

LED display PH 16MM Outdoor full color display 4:3 ratio

Technical parameters

• DOT Interval: 16mm
• Pixel density: 3906dots/m²
• Pixel Composition: 1R1G1B
• Brightness: ≥7000CD/m²
• Module Size: 256mm*256mm
• Module Resolution: 16*16
• Drive mode: Static latching
• Control mode: Video frequency synchronization
• Max. Power consumption per sqm: 1300W
• Big left and right viewing angles reaches 150 degrees
• High definition, Equality color
• Audio and video interface of the system can offer vivid, complete and high-quality LED display to TV broadcasting signal
• High resolution and definition of screen image, clear and non-flash Screen image
• Mature display system software, simple operation
• Brightness software can be adjusted for 100 grades

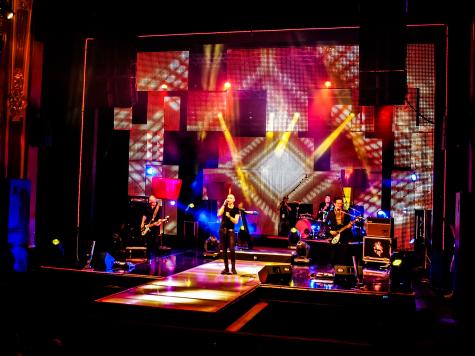

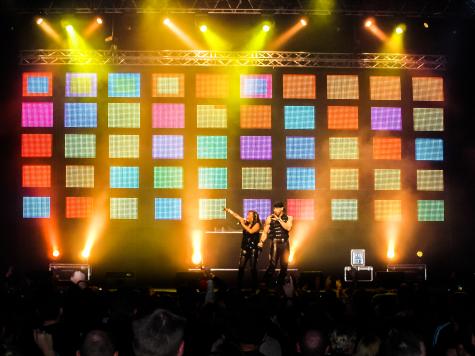

LED display BH – C 37,5 A Outdoor full color display 2:1 ratio

Technical parameters

• Led Display 1200 x 600 cm
• Outdoor full color LED display
• Dot Interval: 37,5mm RGB
• Pixel density: 711dots/m²
• Pixel Composition: 1R1G1B
• Brightness: ≥2500CD/m²
• Operating temperature range -25 to +60 deg.C
• Contrast Ratio 1000:1
• Viewing angle – horizontal 100 deg.
• Viewing angle – vertical 40 deg.
• Input Voltage 85 – 264 V
• Control mode: Video frequency synchronization
• Max. Power consumption per sqm: 250 W
• Display refresh rate 180 Hz
• Colours 1,073 million
